🧪 CMK for Storage

Create a key in the Azure Key Vault Premium and then encrypt an Azure Storage account.

Objectives

By the end of this lab you will have:

Created an RSA-HSM key in the Azure Key Vault Premium.
Created a storage account encrypted with that customer-managed key.
Verified that the encryption is in place and points at your key.

You will need to have completed the Azure Key Vault Premium lab.

Set up variables

If you are continuing straight from the previous lab then you should already have these set. If not, set them to the correct values.

Set default variables.

export AZURE_DEFAULTS_LOCATION="italynorth"
export AZURE_DEFAULTS_GROUP="cmk"

Get the key vault name and determine the storage account name

This command assumes that you only have one active key vault in the resource group.

resource_group_id=$(az group show --name $AZURE_DEFAULTS_GROUP --query id -otsv)
key_vault_name=$(az keyvault list --query "[0].name" -otsv)
uniq=$(md5sum <<< $resource_group_id | cut -c1-8)
storage_account_name=cmklab${uniq}
key_name="cmk-lab-storage"

Generate the key

Generate an HSM-backed key

az keyvault key create --name $key_name \
  --vault-name $key_vault_name \
  --kty RSA-HSM --size 2048

Example output:

{
  "attributes": {
    "created": "2026-03-31T12:54:56+00:00",
    "enabled": true,
    "expires": null,
    "exportable": false,
    "hsmPlatform": "2",
    "notBefore": null,
    "recoverableDays": 7,
    "recoveryLevel": "CustomizedRecoverable",
    "updated": "2026-03-31T12:54:56+00:00"
  },
  "key": {
    "crv": null,
    "d": null,
    "dp": null,
    "dq": null,
    "e": "AQAB",
    "k": null,
    "keyOps": [
      "encrypt",
      "decrypt",
      "sign",
      "verify",
      "wrapKey",
      "unwrapKey"
    ],
    "kid": "https://cmk-lab-bd36f48c.vault.azure.net/keys/cmk-lab-storage/dd008bc0a78543ed9238cff4e1372e36",
    "kty": "RSA-HSM",
    "n": "sTvgIN21z8P3efNPdUTLV46FUg/hb5TXOtplI5jK5luDoWGGGeZpr9oOAxxfPfgRceYG3EJdixyX9SwPk6Kbwmqokr4GqiOXtDeNE8u5NGfQNL6zctMpPakDrqcz2Ef2b9SzEgLmSO+wJTf1b6Ea6KCWvesMP4tMtpqpA+FqCsgFx5oxUWfOJadbKFJWbtqRSNjGAphJzMucZqPkxG74JZt9VTK42d/ARDgg8igYGTJG0a9NeU4KfHS/NPwVAjfs0W7U2JpFSmIjioU3YlNfI7Fj9dQJ+YUdITSP9cnF1RlSVse1LSqtet/IkwLA13XyzwA73XS/DKeZgEQijmFWtw==",
    "p": null,
    "q": null,
    "qi": null,
    "t": null,
    "x": null,
    "y": null
  },
  "managed": null,
  "releasePolicy": null,
  "tags": null
}

Managed HSM equivalent: Use az keyvault key create --hsm-name <mhsm-name> instead. The key type is RSA-HSM in both cases — the difference is that the key lives in your dedicated HSM cluster.

Check the key type

Confirm the key is HSM-protected.
```
az keyvault key show --vault-name "$key_vault_name" --name "$key_name" --query "key.kty"
```
Expected output:
```
"RSA-HSM"
```
The keyType in the response should be RSA-HSM rather than RSA.

Display the versionless key URI

key_uri=$(az keyvault key show --vault-name "$key_vault_name" --name "$key_name" --query "key.kid" -o tsv)
key_uri=${key_uri%/*}
echo "$key_uri"

Example output:

https://cmk-lab-bd36f48c.vault.azure.net/keys/cmk-lab-storage

Alternatively, you can construct the key URI by concatenation, i.e. <vault_uri>/keys/<key_name>.

Note that the pricing for HSM-protected keys is higher than for software keys. Those with advanced key types (i.e., RSA 3,072-bit, RSA 4,096-bit, and Elliptic-Curve Cryptography (ECC)) is higher still. Note that the charge is per version, but do not remove old versions prematurely.

Create the storage account

The storage account needs a managed identity so you can grant it access to the key.

Create the storage account with a managed identity
```
az storage account create --name "$storage_account_name" \
  --sku Standard_LRS --kind StorageV2 \
  --assign-identity --identity-type SystemAssigned
```
Click to view output
Example output:
{ "accessTier": "Hot", "accountMigrationInProgress": null, "allowBlobPublicAccess": false, "allowCrossTenantReplication": null, "allowSharedKeyAccess": false, "allowedCopyScope": null, "azureFilesIdentityBasedAuthentication": null, "blobRestoreStatus": null, "creationTime": "2026-03-31T13:01:08.165285+00:00", "customDomain": null, "defaultToOAuthAuthentication": null, "dnsEndpointType": null, "dualStackEndpointPreference": null, "enableExtendedGroups": null, "enableHttpsTrafficOnly": true, "enableNfsV3": null, "encryption": { "encryptionIdentity": null, "keySource": "Microsoft.Storage", "keyVaultProperties": null, "requireInfrastructureEncryption": null, "services": { "blob": { "enabled": true, "keyType": "Account", "lastEnabledTime": "2026-03-31T13:01:08.257662+00:00" }, "file": { "enabled": true, "keyType": "Account", "lastEnabledTime": "2026-03-31T13:01:08.257662+00:00" }, "queue": null, "table": null } }, "extendedLocation": null, "failoverInProgress": null, "geoPriorityReplicationStatus": null, "geoReplicationStats": null, "id": "/subscriptions/73568139-5c52-4066-a406-3e8533bb0f15/resourceGroups/cmk/providers/Microsoft.Storage/storageAccounts/cmklabbd36f48c", "identity": { "principalId": "721eb7fc-4f6d-4818-b2d7-961782e1ad6d", "tenantId": "ac40fc60-2717-4051-a567-c0cd948f0ac9", "type": "SystemAssigned", "userAssignedIdentities": null }, "immutableStorageWithVersioning": null, "isHnsEnabled": null, "isLocalUserEnabled": null, "isSftpEnabled": null, "isSkuConversionBlocked": null, "keyCreationTime": { "key1": "2026-03-31T13:01:08.247430+00:00", "key2": "2026-03-31T13:01:08.247430+00:00" }, "keyPolicy": null, "kind": "StorageV2", "largeFileSharesState": null, "lastGeoFailoverTime": null, "location": "italynorth", "minimumTlsVersion": "TLS1_0", "name": "cmklabbd36f48c", "networkRuleSet": { "bypass": "AzureServices", "defaultAction": "Allow", "ipRules": [], "ipv6Rules": [], "resourceAccessRules": null, "virtualNetworkRules": [] }, "placement": null, "primaryEndpoints": { "blob": "https://cmklabbd36f48c.blob.core.windows.net/", "dfs": "https://cmklabbd36f48c.dfs.core.windows.net/", "file": "https://cmklabbd36f48c.file.core.windows.net/", "internetEndpoints": null, "ipv6Endpoints": null, "microsoftEndpoints": null, "queue": "https://cmklabbd36f48c.queue.core.windows.net/", "table": "https://cmklabbd36f48c.table.core.windows.net/", "web": "https://cmklabbd36f48c.z38.web.core.windows.net/" }, "primaryLocation": "italynorth", "privateEndpointConnections": [], "provisioningState": "Succeeded", "publicNetworkAccess": null, "resourceGroup": "cmk", "routingPreference": null, "sasPolicy": null, "secondaryEndpoints": null, "secondaryLocation": null, "sku": { "name": "Standard_LRS", "tier": "Standard" }, "statusOfPrimary": "available", "statusOfSecondary": null, "storageAccountSkuConversionStatus": null, "tags": {}, "type": "Microsoft.Storage/storageAccounts", "zones": null }

Create the RBAC role assignment

The storage account needs the Key Vault Crypto Service Encryption User role on the vault so it can wrap and unwrap keys.

Get the object ID

Grab the object ID for the storage account’s system-assigned managed identity

sa_object_id=$(az storage account show --name "$storage_account_name" \
  --query "identity.principalId" -o tsv)

Get the storage account’s resource ID

key_vault_id=$(az keyvault show --name $key_vault_name --query id -o tsv)

Grant the storage account access to the key

az role assignment create \
  --role "Key Vault Crypto Service Encryption User" \
  --assignee-object-id "$sa_object_id" \
  --assignee-principal-type ServicePrincipal \
  --scope "$key_vault_id"

Example output:

{
  "condition": null,
  "conditionVersion": null,
  "createdBy": null,
  "createdOn": "2026-03-31T13:02:59.940613+00:00",
  "delegatedManagedIdentityResourceId": null,
  "description": null,
  "id": "/subscriptions/73568139-5c52-4066-a406-3e8533bb0f15/resourceGroups/cmk/providers/Microsoft.KeyVault/vaults/cmk-lab-bd36f48c/providers/Microsoft.Authorization/roleAssignments/e81012ba-bb70-4ea2-8d44-f9cb1b80528a",
  "name": "e81012ba-bb70-4ea2-8d44-f9cb1b80528a",
  "principalId": "721eb7fc-4f6d-4818-b2d7-961782e1ad6d",
  "principalType": "ServicePrincipal",
  "resourceGroup": "cmk",
  "roleDefinitionId": "/subscriptions/73568139-5c52-4066-a406-3e8533bb0f15/providers/Microsoft.Authorization/roleDefinitions/e147488a-f6f5-4113-8e2d-b22465e65bf6",
  "scope": "/subscriptions/73568139-5c52-4066-a406-3e8533bb0f15/resourceGroups/cmk/providers/Microsoft.KeyVault/vaults/cmk-lab-bd36f48c",
  "type": "Microsoft.Authorization/roleAssignments",
  "updatedBy": "74afa9e2-d243-414b-bab2-db8dd242827f",
  "updatedOn": "2026-03-31T13:03:00.995989+00:00"
}

Note that you can create the RBAC role assignments on the whole key vault (more common) or on individual keys. We’ll do the latter in the next lab for comparison.

Enable Customer Managed Key encryption

Encrypt the storage account using the customer managed key
```
az storage account update --name "$storage_account_name" \
  --encryption-key-source Microsoft.Keyvault \
  --encryption-key-vault "https://${key_vault_name}.vault.azure.net" \
  --encryption-key-name "$key_name"
```
Click to view output
Example output:
{ "accessTier": "Hot", "accountMigrationInProgress": null, "allowBlobPublicAccess": false, "allowCrossTenantReplication": null, "allowSharedKeyAccess": false, "allowedCopyScope": null, "azureFilesIdentityBasedAuthentication": null, "blobRestoreStatus": null, "creationTime": "2026-03-31T13:01:08.165285+00:00", "customDomain": null, "defaultToOAuthAuthentication": null, "dnsEndpointType": null, "dualStackEndpointPreference": null, "enableExtendedGroups": null, "enableHttpsTrafficOnly": true, "enableNfsV3": null, "encryption": { "encryptionIdentity": null, "keySource": "Microsoft.Keyvault", "keyVaultProperties": { "currentVersionedKeyExpirationTimestamp": "1970-01-01T00:00:00+00:00", "currentVersionedKeyIdentifier": "https://cmk-lab-bd36f48c.vault.azure.net/keys/cmk-lab-storage/dd008bc0a78543ed9238cff4e1372e36", "keyName": "cmk-lab-storage", "keyVaultUri": "https://cmk-lab-bd36f48c.vault.azure.net", "keyVersion": null, "lastKeyRotationTimestamp": "2026-03-31T13:11:52.782584+00:00" }, "requireInfrastructureEncryption": null, "services": { "blob": { "enabled": true, "keyType": "Account", "lastEnabledTime": "2026-03-31T13:01:08.257662+00:00" }, "file": { "enabled": true, "keyType": "Account", "lastEnabledTime": "2026-03-31T13:01:08.257662+00:00" }, "queue": null, "table": null } }, "extendedLocation": null, "failoverInProgress": null, "geoPriorityReplicationStatus": null, "geoReplicationStats": null, "id": "/subscriptions/73568139-5c52-4066-a406-3e8533bb0f15/resourceGroups/cmk/providers/Microsoft.Storage/storageAccounts/cmklabbd36f48c", "identity": { "principalId": "721eb7fc-4f6d-4818-b2d7-961782e1ad6d", "tenantId": "ac40fc60-2717-4051-a567-c0cd948f0ac9", "type": "SystemAssigned", "userAssignedIdentities": null }, "immutableStorageWithVersioning": null, "isHnsEnabled": null, "isLocalUserEnabled": null, "isSftpEnabled": null, "isSkuConversionBlocked": null, "keyCreationTime": { "key1": "2026-03-31T13:01:08.247430+00:00", "key2": "2026-03-31T13:01:08.247430+00:00" }, "keyPolicy": null, "kind": "StorageV2", "largeFileSharesState": null, "lastGeoFailoverTime": null, "location": "italynorth", "minimumTlsVersion": "TLS1_0", "name": "cmklabbd36f48c", "networkRuleSet": { "bypass": "AzureServices", "defaultAction": "Allow", "ipRules": [], "ipv6Rules": [], "resourceAccessRules": null, "virtualNetworkRules": [] }, "placement": null, "primaryEndpoints": { "blob": "https://cmklabbd36f48c.blob.core.windows.net/", "dfs": "https://cmklabbd36f48c.dfs.core.windows.net/", "file": "https://cmklabbd36f48c.file.core.windows.net/", "internetEndpoints": null, "ipv6Endpoints": null, "microsoftEndpoints": null, "queue": "https://cmklabbd36f48c.queue.core.windows.net/", "table": "https://cmklabbd36f48c.table.core.windows.net/", "web": "https://cmklabbd36f48c.z38.web.core.windows.net/" }, "primaryLocation": "italynorth", "privateEndpointConnections": [], "provisioningState": "Succeeded", "publicNetworkAccess": null, "resourceGroup": "cmk", "routingPreference": null, "sasPolicy": null, "secondaryEndpoints": null, "secondaryLocation": null, "sku": { "name": "Standard_LRS", "tier": "Standard" }, "statusOfPrimary": "available", "statusOfSecondary": null, "storageAccountSkuConversionStatus": null, "tags": {}, "type": "Microsoft.Storage/storageAccounts", "zones": null }

Verify

Verify that the encryption is using the customer managed key

az storage account show --name $storage_account_name --query "encryption.{source:keySource, vault:keyVaultProperties.keyVaultUri, key:keyVaultProperties.keyName}"

Example output:

{
  "key": "cmk-lab-storage",
  "source": "Microsoft.Keyvault",
  "vault": "https://cmk-lab-bd36f48c.vault.azure.net"
}

You should see keySource as Microsoft.Keyvault and the vault and key name pointing at your Key Vault.

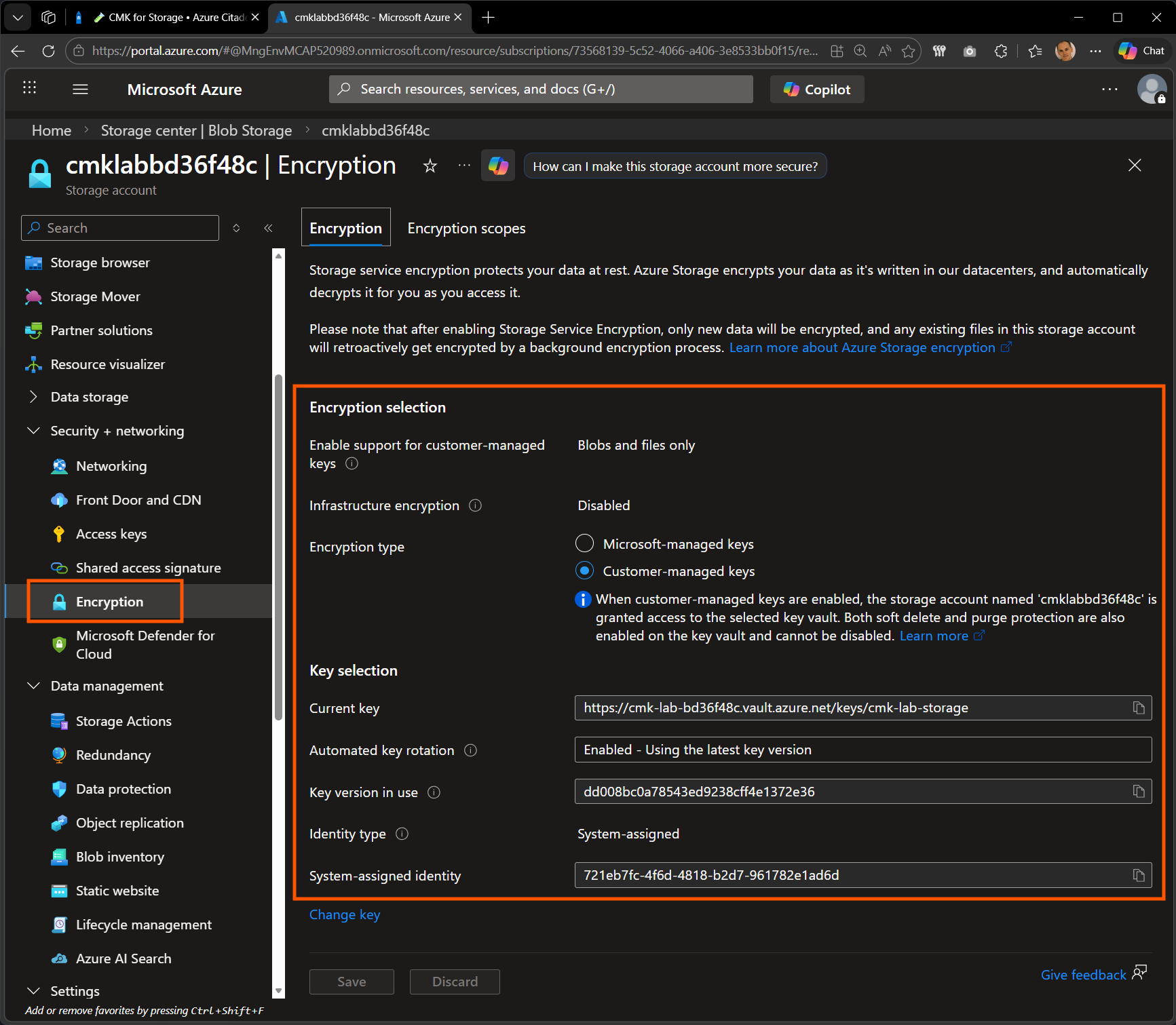

Check in the portal

View the Encryption blade within the storage account.

Standard operations such as blob upload are unchanged. The CMK encryption is transparent to the data plane.

Summary

As a reminder, here are the objectives achieved in this lab.

Created an RSA-HSM key in the Azure Key Vault Premium.
Created a storage account encrypted with that customer-managed key.
Verified that the encryption is in place and points at your key.
