Importing resources

Step through an example of importing an existing resource into Terraform.

Overview

Another common scenario is importing resources that have been created manually. This is not a fully automated process so this section will guide you through the basics.

In this lab you will

  1. Create a storage account resource
  2. Check for a clean terraform plan
  3. Add a minimal resource block
  4. Import the resource
  5. Configure until terraform plan is clean again
  6. Apply the config with the --refresh-only switch

Starting point

Your files should look similar to this:

  • provider.tf

    terraform {
      required_providers {
        azurerm = {
          source  = "hashicorp/azurerm"
          version = "~>3.1"
        }
      }
    }

    provider "azurerm" {
      features {}

      storage_use_azuread = true
    }

  • variables.tf

    variable "resource_group_name" {
      description = "Name for the resource group"
      type        = string
      default     = "terraform-basics"
    }

    variable "location" {
      description = "Azure region"
      type        = string
      default     = "West Europe"
    }

    variable "container_group_name" {
      description = "Name of the container group"
      type        = string
      default     = "terraform-basics"
    }


  • main.tf

    locals {
      uniq = substr(sha1(azurerm_resource_group.basics.id), 0, 8)
    }

    resource "azurerm_resource_group" "basics" {
      name     = var.resource_group_name
      location = var.location

      lifecycle {
        ignore_changes = [
          tags,
        ]
      }
    }

    resource "azurerm_container_group" "basics" {
      name                = var.container_group_name
      location            = azurerm_resource_group.basics.location
      resource_group_name = azurerm_resource_group.basics.name
      ip_address_type     = "Public"
      dns_name_label      = "${var.container_group_name}-${local.uniq}"
      os_type             = "Linux"

      container {
        name   = "inspectorgadget"
        image  = "jelledruyts/inspectorgadget:latest"
        cpu    = "0.5"
        memory = "1.0"

        ports {
          port     = 80
          protocol = "TCP"
        }
      }
    }


  • outputs.tf

    output "ip_address" {
      value = azurerm_container_group.basics.ip_address
    }

    output "fqdn" {
      value = "http://${azurerm_container_group.basics.fqdn}"
    }

  • terraform.tfvars

    location = "UK South"


    You may have set a different value for location.

Create the resource

Use the portal to create a storage account in the terraform-basics resource group.

  1. Create a storage account in the portal (open in a new tab or window)

    • Basics tab
      • Select the correct subscription
      • Select the terraform-basics resource group
      • Create a valid and unique storage account name
      • Select the same region as the resource group, e.g. UK South
      • Leave the Performance as the default, Standard
      • Change redundancy to LRS
    • Advanced tab
      • Disable blob public access
      • Enable hierarchical namespace
      • Enable NFS v3
    • In the Networking tab
      • Disable public access and use private access

    Skip the private endpoint creation for simplicity.

  2. Click on Review and create

    Check the config matching the requirements and validates.

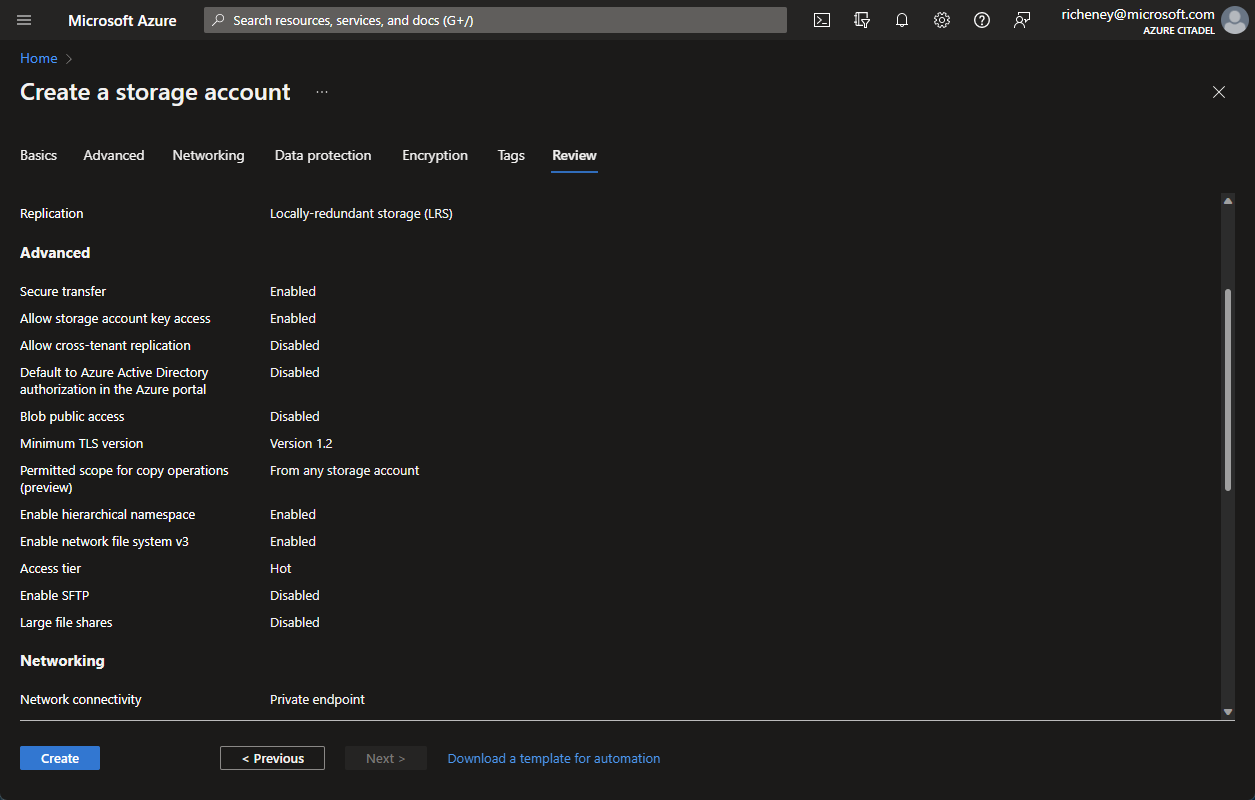

    Storage Account validation

  3. Click on Create

    Deployment should take a few seconds. Navigate to the resource.

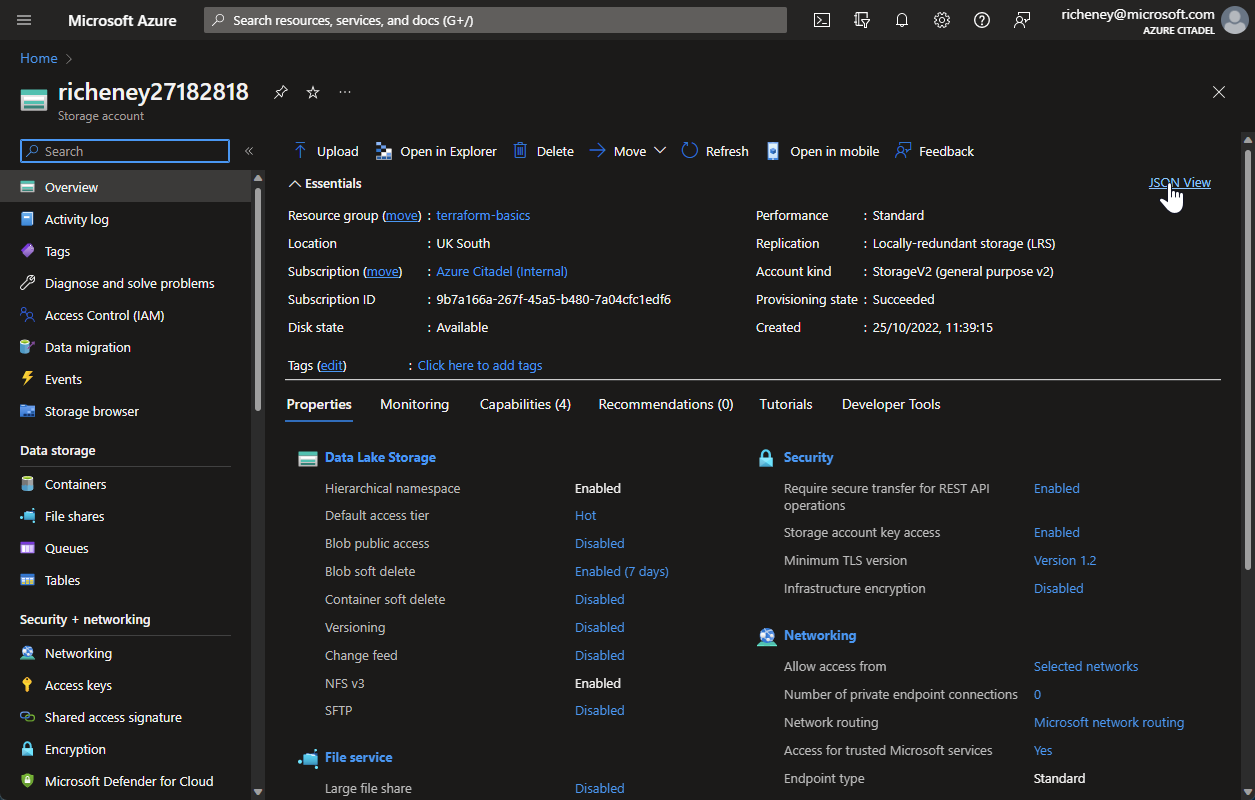

    Storage Account overview

  4. Note the resource ID in the JSON view

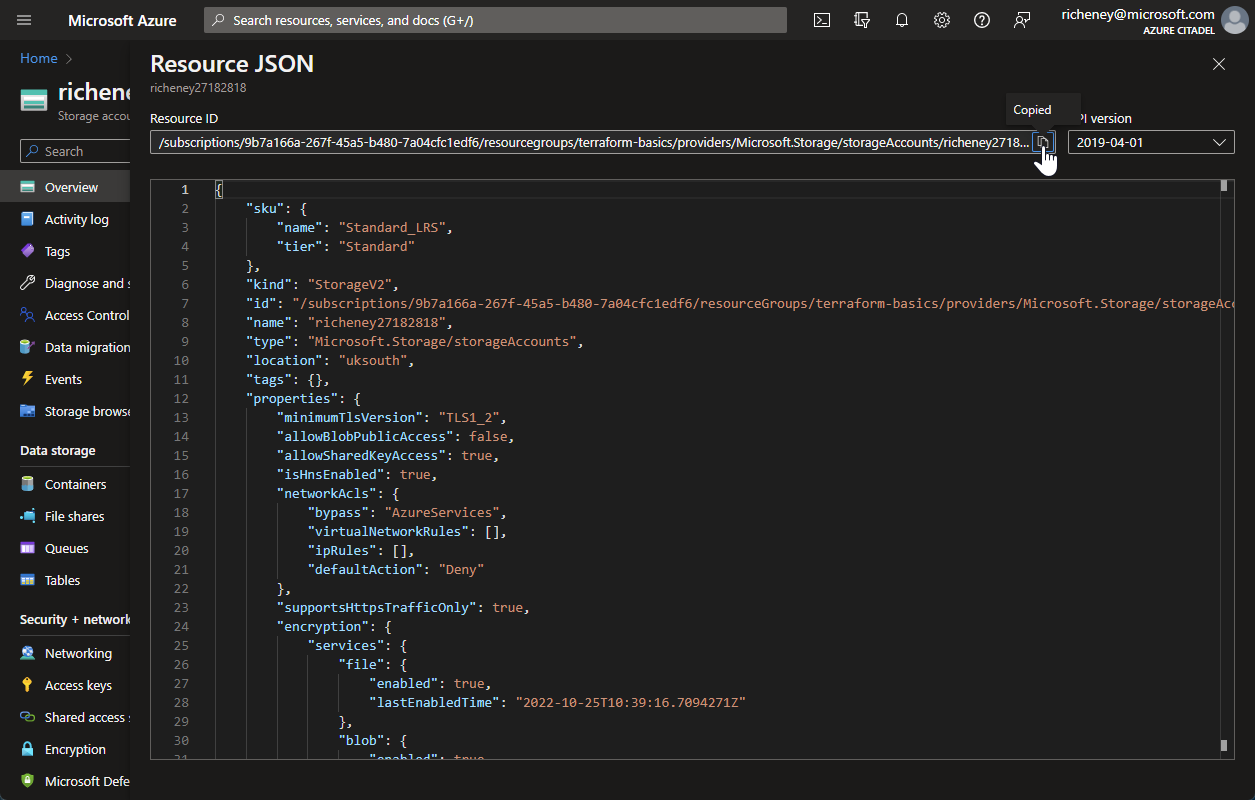

    Storage Account JSON view

    You will need the resource ID for the import command in the next section.

  5. Set a variable for the resource ID

    You can also use CLI commands to set a variable, e.g.

    Bash:

    saId=$(az storage account list --resource-group terraform-basics --query "[0].id" --output tsv)


    Powershell:

    $saId = (Get-AzStorageAccount -ResourceGroupName terraform-basics)[0].id


    This will set the variables to the resource ID of the first storage account found in the resource group.

Check for no diff

  1. Check terraform plan is clean

    terraform plan


    Desired output:

    azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
    azurerm_container_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]

    No changes. Your infrastructure matches the configuration.

    Terraform has compared your real infrastructure against your configuration
    and found no differences, so no changes are needed.


    ⚠️ Do not attempt to import resources unless the Terraform config, state file and Azure reality all match. There should be no diff.

  2. Apply with refresh only (if required)

    If you get the following output then run the refresh only as advised.

    azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
    azurerm_container_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]

    Note: Objects have changed outside of Terraform

    Terraform detected the following changes made outside of Terraform since the
    last "terraform apply":

      # azurerm_container_group.basics has changed
      ~ resource "azurerm_container_group" "basics" {
            id                  = "/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics"
            name                = "terraform-basics"
          + tags                = {}
            # (9 unchanged attributes hidden)

          ~ container {
              + environment_variables        = {}
                name                         = "inspectorgadget"
              + secure_environment_variables = (sensitive value)
                # (4 unchanged attributes hidden)

                # (1 unchanged block hidden)
            }
        }


    Unless you have made equivalent changes to your configuration, or ignored the
    relevant attributes using ignore_changes, the following plan may include
    actions to undo or respond to these changes.

    ─────────────────────────────────────────────────────────────────────────────

    No changes. Your infrastructure matches the configuration.

    Your configuration already matches the changes detected above. If you'd like
    to update the Terraform state to match, create and apply a refresh-only plan:
      terraform apply -refresh-only

    • Run the apply refresh:

      terraform apply --refresh-only

    • Rerun terraform plan to confirm there is no diff.

      terraform plan


    Expected output:

    azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
    azurerm_container_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]

    No changes. Your infrastructure matches the configuration.

    Terraform has compared your real infrastructure against your configuration
    and found no differences, so no changes are needed.


Import into state

Now that you have confirmed that there is no diff, you can create the resource block and import.

  1. Create an empty resource block

    Use the Terraform azurerm docs for azurerm_storage_account to get an example block.

    resource "azurerm_storage_account" "import_example" {
      name                     = "storageaccountname"
      resource_group_name      = azurerm_resource_group.basics.name
      location                 = azurerm_resource_group.basics.location
      account_tier             = "Standard"
      account_replication_type = "GRS"

      tags = {
        environment = "staging"
      }
    }

    • Copy the example into your main.tf

      Note that the block above deviates from the docs page

      • resource group references have been updated to azurerm_resource_group.basics.
      • identifier label has been set to import_example. You would usually set the identifier to your preferred name. Please keep it as import_example for this lab.
    • Set the name to your storage account’s name

      Don’t worry that the other arguments do not match your created resource yet.

  2. Import the resource

    terraform import azurerm_storage_account.import_example $saId


    Example output:

    azurerm_storage_account.import_example: Importing from ID "/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.Storage/storageAccounts/richeney27182818"...
    azurerm_storage_account.import_example: Import prepared!
      Prepared azurerm_storage_account for import
    azurerm_storage_account.import_example: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.Storage/storageAccounts/richeney27182818]

    Import successful!

    The resources that were imported are shown above. These resources are now in
    your Terraform state and will henceforth be managed by Terraform.



  3. List the identifiers

    terraform state list


    Expected output:

    azurerm_container_group.basics
    azurerm_resource_group.basics
    azurerm_storage_account.import_example

  4. Show the imported config

    terraform state show azurerm_storage_account.import_example


    Example output:

    # azurerm_storage_account.import_example:
    resource "azurerm_storage_account" "import_example"  {
        access_tier                       = "Hot"
        account_kind                      = "StorageV2"
        account_replication_type          = "LRS"
        account_tier                      = "Standard"
        allow_nested_items_to_be_public   = false
        enable_https_traffic_only         = true
        id                                = "/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.Storage/storageAccounts/richeney27182818"
        infrastructure_encryption_enabled = false
        is_hns_enabled                    = true
        location                          = "uksouth"
        min_tls_version                   = "TLS1_2"
        name                              = "richeney27182818"
        nfsv3_enabled                     = true
        primary_access_key                = (sensitive value)
        primary_blob_connection_string    = (sensitive value)
        primary_blob_endpoint             = "https://richeney27182818.blob.core.windows.net/"
        primary_blob_host                 = "richeney27182818.blob.core.windows.net"
        primary_connection_string         = (sensitive value)
        primary_dfs_endpoint              = "https://richeney27182818.dfs.core.windows.net/"
        primary_dfs_host                  = "richeney27182818.dfs.core.windows.net"
        primary_file_endpoint             = "https://richeney27182818.file.core.windows.net/"
        primary_file_host                 = "richeney27182818.file.core.windows.net"
        primary_location                  = "uksouth"
        primary_queue_endpoint            = "https://richeney27182818.queue.core.windows.net/"
        primary_queue_host                = "richeney27182818.queue.core.windows.net"
        primary_table_endpoint            = "https://richeney27182818.table.core.windows.net/"
        primary_table_host                = "richeney27182818.table.core.windows.net"
        primary_web_endpoint              = "https://richeney27182818.z33.web.core.windows.net/"
        primary_web_host                  = "richeney27182818.z33.web.core.windows.net"
        queue_encryption_key_type         = "Service"
        resource_group_name               = "terraform-basics"
        secondary_access_key              = (sensitive value)
        secondary_connection_string       = (sensitive value)
        shared_access_key_enabled         = true
        table_encryption_key_type         = "Service"
        tags                              = {}

        blob_properties {
            change_feed_enabled      = false
            last_access_time_enabled = false
            versioning_enabled       = false

            delete_retention_policy {
                days = 7
            }
        }

        network_rules {
            bypass                     = [
                "AzureServices",
            ]
            default_action             = "Deny"
            ip_rules                   = []
            virtual_network_subnet_ids = []
        }

        queue_properties {

            hour_metrics {
                enabled               = true
                include_apis          = true
                retention_policy_days = 7
                version               = "1.0"
            }

            logging {
                delete                = false
                read                  = false
                retention_policy_days = 0
                version               = "1.0"
                write                 = false
            }

            minute_metrics {
                enabled               = false
                include_apis          = false
                retention_policy_days = 0
                version               = "1.0"
            }
        }

        share_properties {

            retention_policy {
                days = 7
            }
        }

        timeouts {}
    }


Check the diff

OK, so the state looks good, but run a terraform plan and you’ll see we have more to do.

  1. Run a plan

    terraform plan


    You should see extensive output showing what Terraform plans to change. Example output:

    azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
    azurerm_container_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]
    azurerm_storage_account.import_example: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.Storage/storageAccounts/richeney27182818]

    Terraform used the selected providers to generate the following execution
    plan. Resource actions are indicated with the following symbols:
    -/+ destroy and then create replacement

    Terraform will perform the following actions:

      # azurerm_storage_account.import_example must be replaced
    -/+ resource "azurerm_storage_account" "import_example" {
          ~ access_tier                       = "Hot" -> (known after apply)
          ~ account_replication_type          = "LRS" -> "GRS"
          ~ allow_nested_items_to_be_public   = false -> true
          ~ id                                = "/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.Storage/storageAccounts/richeney27182818" -> (known after apply)
          ~ is_hns_enabled                    = true -> false # forces replacement
          + large_file_share_enabled          = (known after apply)
          ~ min_tls_version                   = "TLS1_2" -> "TLS1_0"
            name                              = "richeney27182818"
          ~ nfsv3_enabled                     = true -> false # forces replacement
          ~ primary_access_key                = (sensitive value)
          ~ primary_blob_connection_string    = (sensitive value)
          ~ primary_blob_endpoint             = "https://richeney27182818.blob.core.windows.net/" -> (known after apply)
          ~ primary_blob_host                 = "richeney27182818.blob.core.windows.net" -> (known after apply)
          ~ primary_connection_string         = (sensitive value)
          ~ primary_dfs_endpoint              = "https://richeney27182818.dfs.core.windows.net/" -> (known after apply)
          ~ primary_dfs_host                  = "richeney27182818.dfs.core.windows.net" -> (known after apply)
          ~ primary_file_endpoint             = "https://richeney27182818.file.core.windows.net/" -> (known after apply)
          ~ primary_file_host                 = "richeney27182818.file.core.windows.net" -> (known after apply)
          ~ primary_location                  = "uksouth" -> (known after apply)
          ~ primary_queue_endpoint            = "https://richeney27182818.queue.core.windows.net/" -> (known after apply)
          ~ primary_queue_host                = "richeney27182818.queue.core.windows.net" -> (known after apply)
          ~ primary_table_endpoint            = "https://richeney27182818.table.core.windows.net/" -> (known after apply)
          ~ primary_table_host                = "richeney27182818.table.core.windows.net" -> (known after apply)
          ~ primary_web_endpoint              = "https://richeney27182818.z33.web.core.windows.net/" -> (known after apply)
          ~ primary_web_host                  = "richeney27182818.z33.web.core.windows.net" -> (known after apply)
          ~ secondary_access_key              = (sensitive value)
          + secondary_blob_connection_string  = (sensitive value)
          + secondary_blob_endpoint           = (known after apply)
          + secondary_blob_host               = (known after apply)
          ~ secondary_connection_string       = (sensitive value)
          + secondary_dfs_endpoint            = (known after apply)
          + secondary_dfs_host                = (known after apply)
          + secondary_file_endpoint           = (known after apply)
          + secondary_file_host               = (known after apply)
          + secondary_location                = (known after apply)
          + secondary_queue_endpoint          = (known after apply)
          + secondary_queue_host              = (known after apply)
          + secondary_table_endpoint          = (known after apply)
          + secondary_table_host              = (known after apply)
          + secondary_web_endpoint            = (known after apply)
          + secondary_web_host                = (known after apply)
          ~ tags                              = {
              + "environment" = "staging"
            }
            # (9 unchanged attributes hidden)

          ~ blob_properties {
              ~ change_feed_enabled      = false -> (known after apply)
              + default_service_version  = (known after apply)
              ~ last_access_time_enabled = false -> (known after apply)
              ~ versioning_enabled       = false -> (known after apply)

              + container_delete_retention_policy {
                  + days = (known after apply)
                }

              + cors_rule {
                  + allowed_headers    = (known after apply)
                  + allowed_methods    = (known after apply)
                  + allowed_origins    = (known after apply)
                  + exposed_headers    = (known after apply)
                  + max_age_in_seconds = (known after apply)
                }

              ~ delete_retention_policy {
                  ~ days = 7 -> (known after apply)
                }
            }

          ~ network_rules {
              ~ bypass                     = [
                  - "AzureServices",
                ] -> (known after apply)
              ~ default_action             = "Deny" -> (known after apply)
              ~ ip_rules                   = [] -> (known after apply)
              ~ virtual_network_subnet_ids = [] -> (known after apply)

              + private_link_access {
                  + endpoint_resource_id = (known after apply)
                  + endpoint_tenant_id   = (known after apply)
                }
            }

          ~ queue_properties {
              + cors_rule {
                  + allowed_headers    = (known after apply)
                  + allowed_methods    = (known after apply)
                  + allowed_origins    = (known after apply)
                  + exposed_headers    = (known after apply)
                  + max_age_in_seconds = (known after apply)
                }

              ~ hour_metrics {
                  ~ enabled               = true -> (known after apply)
                  ~ include_apis          = true -> (known after apply)
                  ~ retention_policy_days = 7 -> (known after apply)
                  ~ version               = "1.0" -> (known after apply)
                }

              ~ logging {
                  ~ delete                = false -> (known after apply)
                  ~ read                  = false -> (known after apply)
                  ~ retention_policy_days = 0 -> (known after apply)
                  ~ version               = "1.0" -> (known after apply)
                  ~ write                 = false -> (known after apply)
                }

              ~ minute_metrics {
                  ~ enabled               = false -> (known after apply)
                  ~ include_apis          = false -> (known after apply)
                  ~ retention_policy_days = 0 -> (known after apply)
                  ~ version               = "1.0" -> (known after apply)
                }
            }

          + routing {
              + choice                      = (known after apply)
              + publish_internet_endpoints  = (known after apply)
              + publish_microsoft_endpoints = (known after apply)
            }

          ~ share_properties {
              + cors_rule {
                  + allowed_headers    = (known after apply)
                  + allowed_methods    = (known after apply)
                  + allowed_origins    = (known after apply)
                  + exposed_headers    = (known after apply)
                  + max_age_in_seconds = (known after apply)
                }

              ~ retention_policy {
                  ~ days = 7 -> (known after apply)
                }

              + smb {
                  + authentication_types            = (known after apply)
                  + channel_encryption_type         = (known after apply)
                  + kerberos_ticket_encryption_type = (known after apply)
                  + versions                        = (known after apply)
                }
            }

          - timeouts {}
        }

    Plan: 1 to add, 0 to change, 1 to destroy.

    ─────────────────────────────────────────────────────────────────────────────

    Note: You didn't use the -out option to save this plan, so Terraform can't
    guarantee to take exactly these actions if you run "terraform apply" now.


    Ouch! OK, let’s work through this.

  2. Identify the required config updates

    The good news is that it is pretty quick to deconstruct the output and work out what is important, and experience helps.

    First of all, ignore those lines that include (known after apply). The only ones that we need to pay attention to are those which have changes, deletes or adds where the target state is shown as a specific value such as a literal string or boolean.

    The output below has been manually truncated to help you to focus on what is important. Update the config files with the correct arguments and you should eventually get to a clean plan with no diff.

    Terraform will perform the following actions:

      # azurerm_storage_account.import_example must be replaced
    -/+ resource "azurerm_storage_account" "import_example" {
          ~ account_replication_type          = "LRS" -> "GRS"
          ~ allow_nested_items_to_be_public   = false -> true
          ~ is_hns_enabled                    = true -> false # forces replacement
          ~ min_tls_version                   = "TLS1_2" -> "TLS1_0"
          ~ nfsv3_enabled                     = true -> false # forces replacement

          ~ tags                              = {
              + "environment" = "staging"
            }
        }

    Plan: 1 to add, 0 to change, 1 to destroy.

    ─────────────────────────────────────────────────────────────────────────────

    Note: You didn't use the -out option to save this plan, so Terraform can't
    guarantee to take exactly these actions if you run "terraform apply" now.


    That is a more manageable set. Let’s get to work.

Update the config files

  1. Update the replication type

    The plan included:

          ~ account_replication_type          = "LRS" -> "GRS"


    Update account_replication_type string value to LRS.

      account_replication_type = "LRS"

  2. Add the public blob access boolean

    The plan included:

          ~ allow_nested_items_to_be_public  = false -> true


    Add the allow_blob_public_access argument and set the boolean value to false. (Default is true.)

    allow_nested_items_to_be_public = false

  3. Check on progress

    Run a diff.

    terraform plan


    You should see that those two changes are no longer planned. Making progress!

  4. Update the main.tf to match

    💪 Challenge: update the storage account resource block until you get a clean plan

    OK, so we’ve done two together. TIme for you to finish off the remainder:

    Terraform will perform the following actions:

      # azurerm_storage_account.import_example must be replaced
    -/+ resource "azurerm_storage_account" "import_example" {
          ~ is_hns_enabled                    = true -> false # forces replacement
          ~ min_tls_version                   = "TLS1_2" -> "TLS1_0"
          ~ nfsv3_enabled                     = true -> false # forces replacement

          ~ tags                              = {
              + "environment" = "staging"
            }
        }

    Plan: 1 to add, 0 to change, 1 to destroy.

    ─────────────────────────────────────────────────────────────────────────────

    Note: You didn't use the -out option to save this plan, so Terraform can't
    guarantee to take exactly these actions if you run "terraform apply" now.


    References:

    • the azurerm_storage_account documentation page
    • the terraform state show azurerm_storage_account.import_example output

    Check on your progress by periodically saving the file and rerunningterraform plan. (You may notice that terraform plan also validates the files first.)

    If you get stuck then a working config is shown at the start of the next lab.

  5. Check for no diff

    Confirm that terraform plan is clean

    terraform plan


    Example output:

    azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
    azurerm_container_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]
    azurerm_storage_account.import_example: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.Storage/storageAccounts/richeney27182818]

    No changes. Your infrastructure matches the configuration.

    Terraform has compared your real infrastructure against your configuration
    and found no differences, so no changes are needed.

  6. Format the files

    Check that the formatting is as it should be.

    terraform fmt


    Example output:

    main.tf


Summary

Importing resources is a little messy, but is a useful skill to have as a Terraform admin.

It can be a useful way to add in the config for complex resources. For example, the documentation for Azure Application Gateway is difficult to decipher given the range of options and possible configuration. You may find it simpler to provision the resource using the portal and then import the config.

The good news is that Microsoft employees have released a preview of Azure Terrafy (aztfy) as per this blog post.

In the next lab we will destroy the config and tidy up.


Help us improve

Azure Citadel is a community site built on GitHub, please contribute and send a pull request

 Make a change
