Managing state

Common lifecycle management areas that deal with state with refresh, ignore, move and taint.

Overview

One of Terraform’s strengths is lifecycle management. Knowing how to work with the Terraform state is important.

In this lab you will

refresh the local state file
learn how to tolerate certain changes using lifecycle ignore
fix Terraform identification issues with move
taint a single resource to force a recreation

Starting point

Your files should look similar to this:

provider.tf

terraform {
  required_providers {
    azurerm = {
      source  = "hashicorp/azurerm"
      version = "~>3.1"
    }
  }
}

provider "azurerm" {
  features {}

  storage_use_azuread = true
}

variables.tf

variable "resource_group_name" {
  description = "Name for the resource group"
  type        = string
  default     = "terraform-basics"
}

variable "location" {
  description = "Azure region"
  type        = string
  default     = "West Europe"
}

variable "container_group_name" {
  description = "Name of the container group"
  type        = string
  default     = "terraform-basics"
}

main.tf

locals {
  uniq = substr(sha1(azurerm_resource_group.basics.id), 0, 8)
}

resource "azurerm_resource_group" "basics" {
  name     = var.resource_group_name
  location = var.location
}

resource "azurerm_container_group" "example" {
  name                = var.container_group_name
  location            = azurerm_resource_group.basics.location
  resource_group_name = azurerm_resource_group.basics.name
  ip_address_type     = "Public"
  dns_name_label      = "${var.container_group_name}-${local.uniq}"
  os_type             = "Linux"

  container {
    name   = "inspectorgadget"
    image  = "jelledruyts/inspectorgadget:latest"
    cpu    = "0.5"
    memory = "1.0"

    ports {
      port     = 80
      protocol = "TCP"
    }
  }
}

outputs.tf

output "ip_address" {
  value = azurerm_container_group.example.ip_address
}

output "fqdn" {
  value = "http://${azurerm_container_group.example.fqdn}"
}

terraform.tfvars
```
location = "UK South"
```
You may have set a different value for location.

Refresh

Running terraform plan or terraform apply forces the azurerm provider to communicate with Azure to get the current state. This is stored in memory for the comparison (“diff”) against the config files and determine what (if anything) needs to be done.

You can always update the local state file (terraform.tfstate) using terraform refresh. Let’s see it in action.

Check the current state for the resource group

terraform state show azurerm_resource_group.basics

Example output:

# azurerm_resource_group.basics:
resource "azurerm_resource_group" "basics" {
    id       = "/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics"
    location = "uksouth"
    name     = "terraform-basics"
    tags     = {}
}

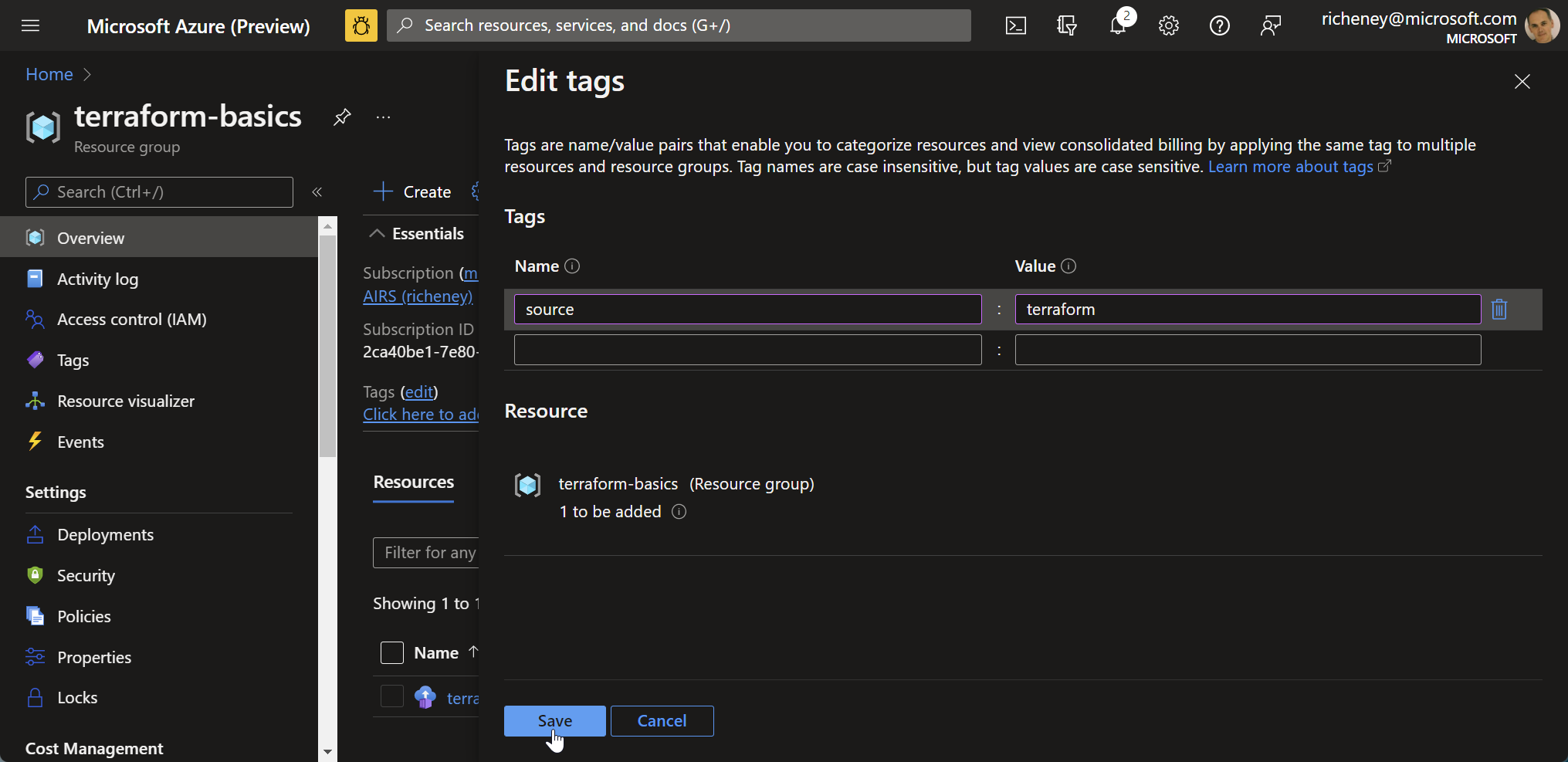

Add a tag in the portal

Open the Azure portal, find the resource group and add a tag: source = terraform
Redisplay the state
```
terraform state show azurerm_resource_group.basics
```
Unsurprisingly, the output is unchanged. It is only a JSON text file.

Refresh the state file

terraform refresh

Example output:

azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
azurerm_container_group.example: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]

Outputs:

fqdn = "http://terraform-basics-c3818179.uksouth.azurecontainer.io"
ip_address = "20.108.130.109"

Display the updated state
```
terraform state show azurerm_resource_group.basics
```
Example output:
```
# azurerm_resource_group.basics:
resource "azurerm_resource_group" "basics" {
    id       = "/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics"
    location = "uksouth"
    name     = "terraform-basics"
    tags     = {
        "source" = "terraform"
    }
}
```
The state file is now up to date. It can be beneficial for state to be kept current, particularly if you are using read only remote states or extracting values via scripting.

You may find that running a terraform plan soon after a terraform apply shows some additional detail that is not in state such as the formation of empty arrays and lists etc. The plan will alert you to this and prompts you to run terraform apply --refresh-only to fully sync up.

Handling changes

Ideally, the resource groups managed by Terraform will not be subject to manual changes. However, in the real world this is a common occurrence and you may need to update the config to handle it.

Let’s use a common example, to see the impact when someone adds a new tag.

Run a plan

terraform plan

Example output:

azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
azurerm_container_group.example: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]

Terraform used the selected providers to generate the following execution
plan. Resource actions are indicated with the following symbols:
  ~ update in-place

Terraform will perform the following actions:

  # azurerm_resource_group.basics will be updated in-place
  ~ resource "azurerm_resource_group" "basics" {
        id       = "/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics"
        name     = "terraform-basics"
      ~ tags     = {
          - "source" = "terraform" -> null
        }
        # (1 unchanged attribute hidden)
    }

Plan: 0 to add, 1 to change, 0 to destroy.

─────────────────────────────────────────────────────────────────────────────

Note: You didn't use the -out option to save this plan, so Terraform can't
guarantee to take exactly these actions if you run "terraform apply" now.

If you were to run terraform apply now, then Terraform would remove the source tag and make sure the environment matches the definition in the config files.

ℹ️ This is declarative infrastructure as code, so reverting “drift” to match the files is expected behaviour.

You have three options

Revert: Run terraform apply and revert the manual change
Update: Add the source tag and value into the config
Ignore: Update the config to ignore certain changes, i.e. tag updates

Update

The second approach is to update the files to match the reality. The aim is to update the config to the point where a terraform plan shows that there are no changes to be made.

Add the tag

Update your main.tf and add the tag to the resource group block

Example updated resource block:

resource "azurerm_resource_group" "basics" {
  name     = var.resource_group_name
  location = var.location

  tags = {
    source = "terraform"
  }
}

Check for a clean plan

terraform plan

Example output:

azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
azurerm_container_group.example: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]

No changes. Your infrastructure matches the configuration.

Terraform has compared your real infrastructure against your configuration
and found no differences, so no changes are needed.

Ignore

The other approach is to force Terraform to ignore certain resource attributes using lifecycle blocks.S

Revert the resource group block

Remove the tags argument in the resource group block.

Reverted resource group block:
```
resource "azurerm_resource_group" "basics" {
  name     = var.resource_group_name
  location = var.location
}
```
A terraform plan would now display a planned in-place update.
Ignore changes to tags

Add in a lifecycle ignore block to the resource group.
```
resource "azurerm_resource_group" "basics" {
  name     = var.resource_group_name
  location = var.location

  lifecycle {
    ignore_changes = [
      tags,
    ]
  }
}
```
It is very common to see ignore blocks for tags. Tags are commonly updated manually, or via Azure Policies with modify effects.

Another example if Azure Application Gateway if being used as an Application Gateway Ingress Controller (AGIC) by AKS. In this configuration the App Gateway is reconfigured dynamically using Kubernetes annotations.

Confirm that no changes will be made

terraform plan

Example output:

azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
azurerm_container_group.example: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]

No changes. Your infrastructure matches the configuration.

Terraform has compared your real infrastructure against your configuration
and found no differences, so no changes are needed.

The process where the plan creates an in-memory state from the provider calls and then compares against the config files is called a diff. The ignore statements specifies any attributes to be excluded from the diff.

Renaming

Sometimes you need to tweak the Terraform identifiers. It may be a straight rename, a shift from a single resource to using count or for_each or moving something to and from a module. This section will go through a simple example.

Check for a clean plan

terraform plan

Example output:

azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
azurerm_container_group.example: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]

No changes. Your infrastructure matches the configuration.

Terraform has compared your real infrastructure against your configuration
and found no differences, so no changes are needed.

List out the identifiers in state
```
terraform state list
```
Example output:
```
azurerm_container_group.example
azurerm_resource_group.basics
```
We will change the azurerm_container_group.example to azurerm_container_group.basics.
Update main.tf

Change the label for the azurerm_container_group identifier from “example” to “basics”.
Rerun plan
```
terraform plan
```
You should see validation errors. Refactor the two outputs.
Rerun plan
```
terraform plan
```
You should see the container group will be deleted and recreated.

⚠️ Do not run terraform apply!!
Rename the identifier in state

The move command is terraform state mv <source> <dest>.
```
terraform state mv azurerm_container_group.example azurerm_container_group.basics
```
```
Move "azurerm_container_group.example" to "azurerm_container_group.basics"
Successfully moved 1 object(s).
```
Hint: If you are specifying a for_each identifier, then escape the quotes, e.g. azurerm_resource_name.example[\"name\"].

Check for a clean plan

terraform plan

Example output:

azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
azurerm_container_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]

No changes. Your infrastructure matches the configuration.

Terraform has compared your real infrastructure against your configuration
and found no differences, so no changes are needed.

Tainting

You may find a situation when one of your resources has failed. Or you may wish for it to be recreated, but Terraform sees no need to do so based on the config files. (For example if you have changed the contents of a script uri.)

If so, then use terraform taint to force the resource to be recreated.

Check for a clean plan

terraform plan

Example output:

azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
azurerm_container_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]

No changes. Your infrastructure matches the configuration.

Terraform has compared your real infrastructure against your configuration
and found no differences, so no changes are needed.

List out the identifiers

terraform state list

Example output:

azurerm_container_group.basics
azurerm_resource_group.basics

Taint the container group

Force the container group to be recreated as an example.

terraform taint azurerm_container_group.basics

Resource instance azurerm_container_group.basics has been marked as tainted.

Plan

terraform plan

Example output:

azurerm_resource_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics]
azurerm_container_group.basics: Refreshing state... [id=/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics]

Terraform used the selected providers to generate the following execution
plan. Resource actions are indicated with the following symbols:
-/+ destroy and then create replacement

Terraform will perform the following actions:

  # azurerm_container_group.basics is tainted, so must be replaced
-/+ resource "azurerm_container_group" "basics" {
      ~ exposed_port        = [
          - {
              - port     = 80
              - protocol = "TCP"
            },
        ] -> (known after apply)
      ~ fqdn                = "terraform-basics-c3818179.uksouth.azurecontainer.io" -> (known after apply)
      ~ id                  = "/subscriptions/2ca40be1-7e80-4f2b-92f7-06b2123a68cc/resourceGroups/terraform-basics/providers/Microsoft.ContainerInstance/containerGroups/terraform-basics" -> (known after apply)
      ~ ip_address          = "20.108.130.109" -> (known after apply)
      ~ ip_address_type     = "Public" -> "public"
        name                = "terraform-basics"
      - tags                = {} -> null
        # (5 unchanged attributes hidden)

      ~ container {
          ~ commands                     = [] -> (known after apply)
          - environment_variables        = {} -> null
            name                         = "inspectorgadget"
          - secure_environment_variables = (sensitive value)
            # (3 unchanged attributes hidden)

            # (1 unchanged block hidden)
        }
    }

Plan: 1 to add, 0 to change, 1 to destroy.

Changes to Outputs:
  ~ fqdn       = "http://terraform-basics-c3818179.uksouth.azurecontainer.io" -> (known after apply)
  ~ ip_address = "20.108.130.109" -> (known after apply)

─────────────────────────────────────────────────────────────────────────────

Note: You didn't use the -out option to save this plan, so Terraform can't
guarantee to take exactly these actions if you run "terraform apply" now.

Apply
```
terraform apply --auto-approve
```
The Azure Container Instance will be recreated.

Summary

Terraform can make life simpler in terms of lifecycle management and seeing the planned impact of configuration changes, but it is useful to know how to use the tools to manage these scenarios.

In the next lab we will handle the import of a resource that has been created outside of Terraform and bring it into state safely.

Help us improve

Azure Citadel is a community site built on GitHub, please contribute and send a pull request

Make a change

Contents

Managing state

Overview

Starting point

Refresh

Handling changes

Update

Ignore

Renaming

Tainting

Summary

Help us improve
