Configure an app reg for development

Introduction

At this point you have the access, the tooling, and a Fabric capacity to use. This page will take you through the one off task to get you configured for the user context.

This page follows the flow of the https://registry.terraform.io/providers/microsoft/fabric/latest/docs/guides/auth_app_reg_user page, making use of the Azure CLI to speed it up.

At each step we’ll also show the resulting change in the portal for transparency on what each command is doing.

User Context overview

In this section you will:

1. create an app registration
2. add on delegated API permissions for the Power BI service (which is also used by Fabric) and the Microsoft Graph
3. create an API endpoint
4. authenticate against the API endpoint as a target

At the bottom of the page you will find a summary of the commands for speed.

Create the app reg

1. Define an identifier URI

   ℹ️ Updated as the URI now needs to comply with https://aka.ms/identifier-uri-formatting-error.

   domain=$(az account show --query tenantDefaultDomain -otsv | tr "[[:upper:]]" "[[:lower:]]")
   name=fabric_terraform_provider
   uri="api://$domain/$name"


2. Create the app reg itself.

   az ad app create --display-name $name --identifier-uris $uri


   Microsoft Entra admin center > App registrations > All applications > filter to fabric_terraform_provider

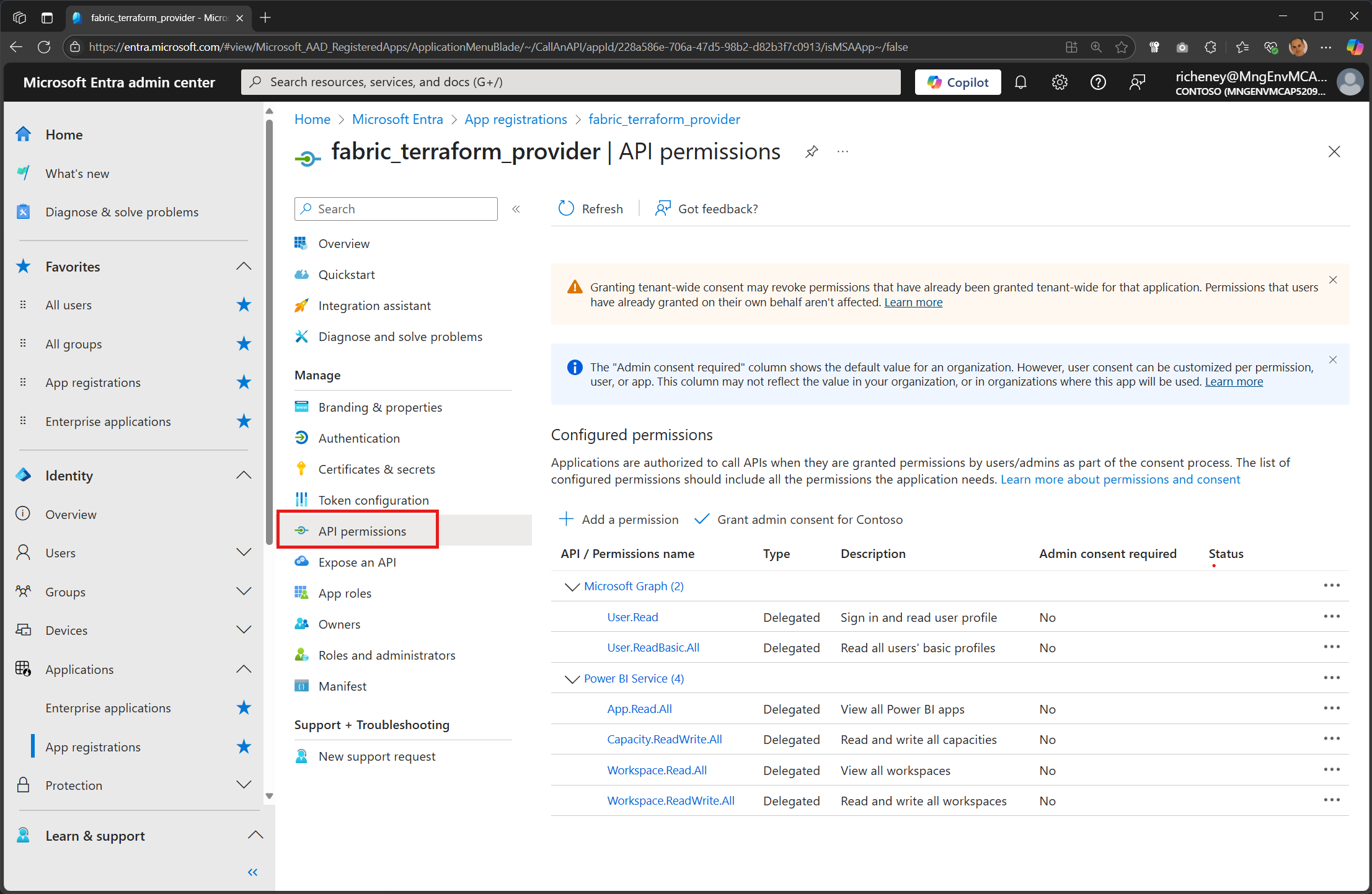

3. Add the delegated API permissions

   az ad app update --id $uri --required-resource-accesses @files/manifest.scope.json




   ⚠️ Note that the GUID used for the id just needs to be unique to your directory. It does not need to be “1ca1271c-e2c0-437c-af9a-3a92e745a24d”. The other GUIDs in the JSON files are specific.

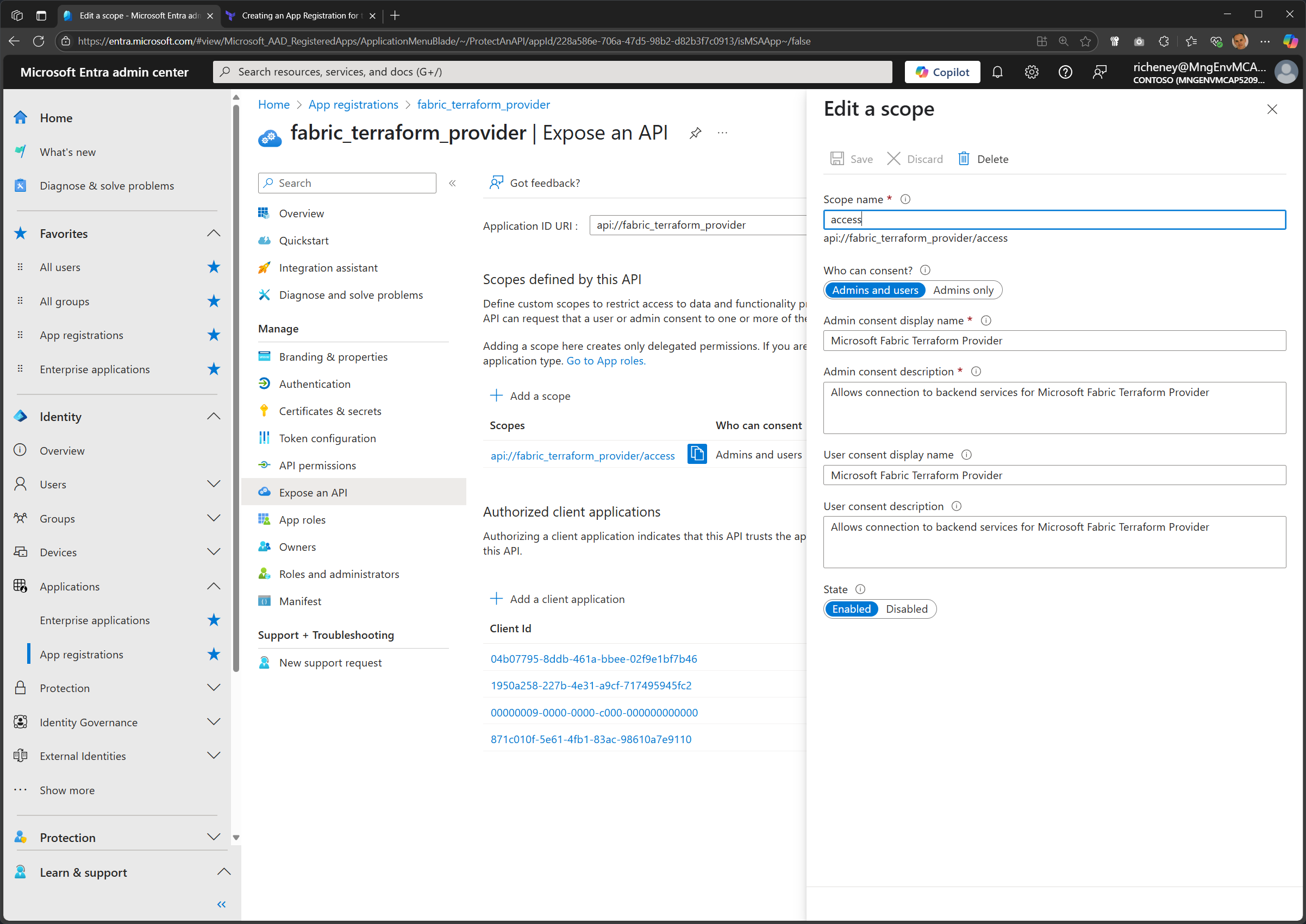

4. Expose the API

   Define a scope

   az ad app update --id $uri --set api=@files/api.expose.json


   Add pre-authorizations for Azure CLI, PowerShell and Power BI

   az ad app update --id $uri --set api=@files/api.preauthorize.json




5. Add yourself as owner

   az ad app owner add --id $uri --owner-object-id $(az ad signed-in-user show --query id -otsv)

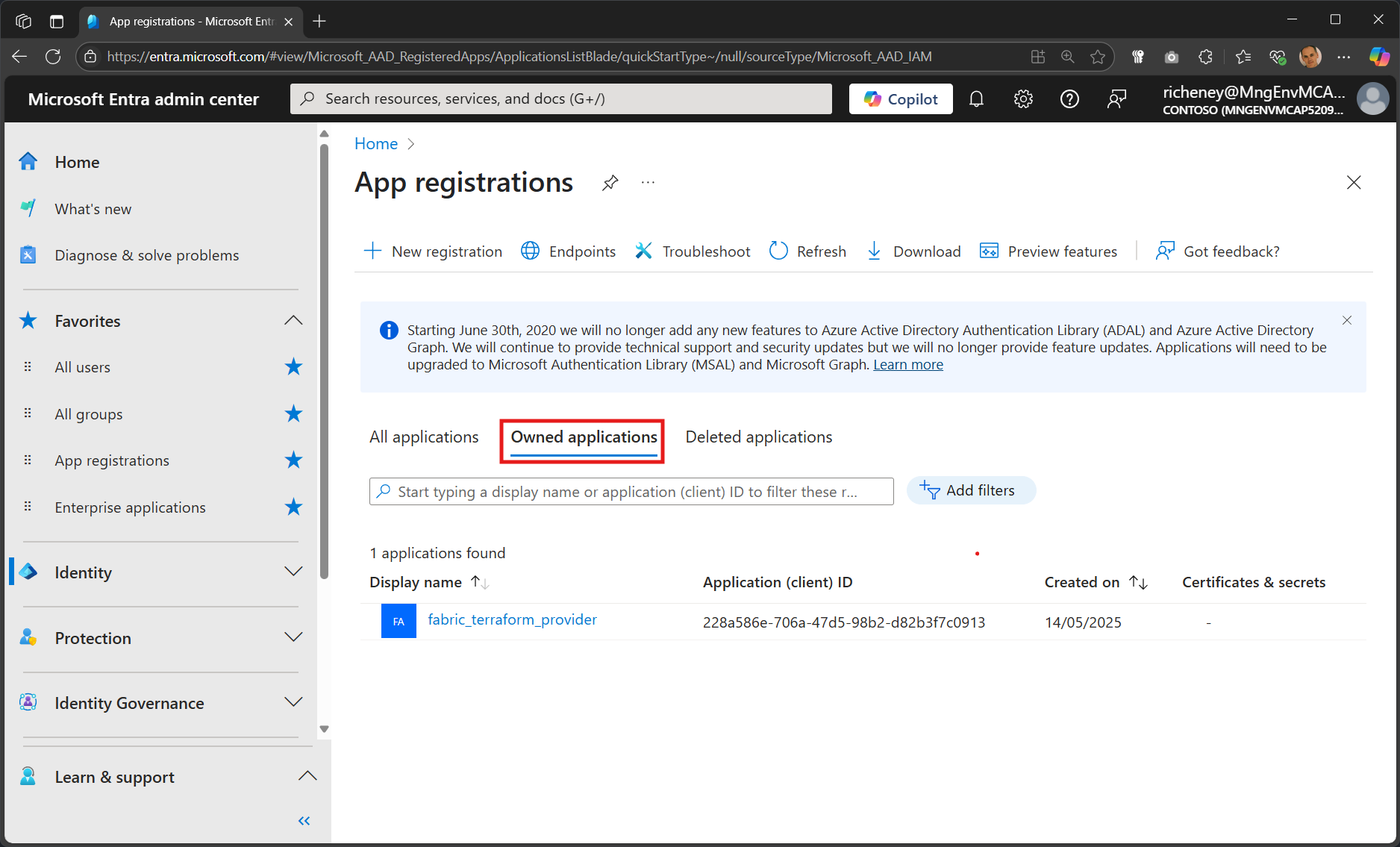

   The app reg will now show in the default Owned Applications tab.



Verify

This section has been included in case you want to do a full comparison of the config, paying close attention to the modified api object and identifierUris and requiredResourceAccess arrays.

1. Show full output for the app reg

   az ad app show --id $uri --output jsonc


   Example output

   {
     "@odata.context": "https://graph.microsoft.com/v1.0/$metadata#applications/$entity",
     "addIns": [],
     "api": {
       "acceptMappedClaims": null,
       "knownClientApplications": [],
       "oauth2PermissionScopes": [
         {
           "adminConsentDescription": "Allows connection to backend services for Microsoft Fabric Terraform Provider",
           "adminConsentDisplayName": "Microsoft Fabric Terraform Provider",
           "id": "1ca1271c-e2c0-437c-af9a-3a92e745a24d",
           "isEnabled": true,
           "type": "User",
           "userConsentDescription": "Allows connection to backend services for Microsoft Fabric Terraform Provider",
           "userConsentDisplayName": "Microsoft Fabric Terraform Provider",
           "value": "access"
         }
       ],
       "preAuthorizedApplications": [
         {
           "appId": "04b07795-8ddb-461a-bbee-02f9e1bf7b46",
           "delegatedPermissionIds": [
             "1ca1271c-e2c0-437c-af9a-3a92e745a24d"
           ]
         },
         {
           "appId": "1950a258-227b-4e31-a9cf-717495945fc2",
           "delegatedPermissionIds": [
             "1ca1271c-e2c0-437c-af9a-3a92e745a24d"
           ]
         },
         {
           "appId": "00000009-0000-0000-c000-000000000000",
           "delegatedPermissionIds": [
             "1ca1271c-e2c0-437c-af9a-3a92e745a24d"
           ]
         },
         {
           "appId": "871c010f-5e61-4fb1-83ac-98610a7e9110",
           "delegatedPermissionIds": [
             "1ca1271c-e2c0-437c-af9a-3a92e745a24d"
           ]
         }
       ],
       "requestedAccessTokenVersion": null
     },
     "appId": "<clientId>",
     "appRoles": [],
     "applicationTemplateId": null,
     "certification": null,
     "createdDateTime": "2025-05-14T14:54:52Z",
     "defaultRedirectUri": null,
     "deletedDateTime": null,
     "description": null,
     "disabledByMicrosoftStatus": null,
     "displayName": "fabric_terraform_provider",
     "groupMembershipClaims": null,
     "id": "<objectId>",
     "identifierUris": [
       "api://contoso.com/fabric_terraform_provider"
     ],
     "info": {
       "logoUrl": null,
       "marketingUrl": null,
       "privacyStatementUrl": null,
       "supportUrl": null,
       "termsOfServiceUrl": null
     },
     "isDeviceOnlyAuthSupported": null,
     "isFallbackPublicClient": null,
     "keyCredentials": [],
     "nativeAuthenticationApisEnabled": null,
     "notes": null,
     "optionalClaims": null,
     "parentalControlSettings": {
       "countriesBlockedForMinors": [],
       "legalAgeGroupRule": "Allow"
     },
     "passwordCredentials": [],
     "publicClient": {
       "redirectUris": []
     },
     "publisherDomain": "<domainSuffix>",
     "requestSignatureVerification": null,
     "requiredResourceAccess": [
       {
         "resourceAccess": [
           {
             "id": "e1fe6dd8-ba31-4d61-89e7-88639da4683d",
             "type": "Scope"
           },
           {
             "id": "b340eb25-3456-403f-be2f-af7a0d370277",
             "type": "Scope"
           }
         ],
         "resourceAppId": "00000003-0000-0000-c000-000000000000"
       },
       {
         "resourceAccess": [
           {
             "id": "4eabc3d1-b762-40ff-9da5-0e18fdf11230",
             "type": "Scope"
           },
           {
             "id": "b2f1b2fa-f35c-407c-979c-a858a808ba85",
             "type": "Scope"
           },
           {
             "id": "445002fb-a6f2-4dc1-a81e-4254a111cd29",
             "type": "Scope"
           },
           {
             "id": "8b01a991-5a5a-47f8-91a2-84d6bfd72c02",
             "type": "Scope"
           }
         ],
         "resourceAppId": "00000009-0000-0000-c000-000000000000"
       }
     ],
     "samlMetadataUrl": null,
     "serviceManagementReference": null,
     "servicePrincipalLockConfiguration": null,
     "signInAudience": "AzureADMyOrg",
     "spa": {
       "redirectUris": []
     },
     "tags": [],
     "tokenEncryptionKeyId": null,
     "uniqueName": null,
     "verifiedPublisher": {
       "addedDateTime": null,
       "displayName": null,
       "verifiedPublisherId": null
     },
     "web": {
       "homePageUrl": null,
       "implicitGrantSettings": {
         "enableAccessTokenIssuance": false,
         "enableIdTokenIssuance": false
       },
       "logoutUrl": null,
       "redirectUriSettings": [],
       "redirectUris": []
     }
   }


Full set

Here is the full set of commands using inline JSON, in case you need to run them outside of the context of these labs.

name=fabric_terraform_provider
uri="api://$(az account show --query tenantId -otsv)/$name"

az ad app create --display-name $name --identifier-uris $uri
az ad app update --id $uri --required-resource-accesses '[{"resourceAppId":"00000003-0000-0000-c000-000000000000","resourceAccess":[{"id":"e1fe6dd8-ba31-4d61-89e7-88639da4683d","type":"Scope"},{"id":"b340eb25-3456-403f-be2f-af7a0d370277","type":"Scope"}]},{"resourceAppId":"00000009-0000-0000-c000-000000000000","resourceAccess":[{"id":"4eabc3d1-b762-40ff-9da5-0e18fdf11230","type":"Scope"},{"id":"b2f1b2fa-f35c-407c-979c-a858a808ba85","type":"Scope"},{"id":"445002fb-a6f2-4dc1-a81e-4254a111cd29","type":"Scope"},{"id":"8b01a991-5a5a-47f8-91a2-84d6bfd72c02","type":"Scope"}]}]'
echo "Added roles"
az ad app update --id $uri --set api='{"acceptMappedClaims":null,"knownClientApplications":[],"oauth2PermissionScopes":[{"adminConsentDescription":"Allows connection to backend services for Microsoft Fabric Terraform Provider","adminConsentDisplayName":"Microsoft Fabric Terraform Provider","id":"1ca1271c-e2c0-437c-af9a-3a92e745a24d","isEnabled":true,"type":"User","userConsentDescription":"Allows connection to backend services for Microsoft Fabric Terraform Provider","userConsentDisplayName":"Microsoft Fabric Terraform Provider","value":"access"}],"preAuthorizedApplications":[],"requestedAccessTokenVersion":null}'
echo "Added endpoint"
az ad app update --id $uri --set api='{"acceptMappedClaims":null,"knownClientApplications":[],"oauth2PermissionScopes":[{"adminConsentDescription":"Allows connection to backend services for Microsoft Fabric Terraform Provider","adminConsentDisplayName":"Microsoft Fabric Terraform Provider","id":"1ca1271c-e2c0-437c-af9a-3a92e745a24d","isEnabled":true,"type":"User","userConsentDescription":"Allows connection to backend services for Microsoft Fabric Terraform Provider","userConsentDisplayName":"Microsoft Fabric Terraform Provider","value":"access"}],"preAuthorizedApplications":[{"appId":"871c010f-5e61-4fb1-83ac-98610a7e9110","delegatedPermissionIds":["1ca1271c-e2c0-437c-af9a-3a92e745a24d"]},{"appId":"00000009-0000-0000-c000-000000000000","delegatedPermissionIds":["1ca1271c-e2c0-437c-af9a-3a92e745a24d"]},{"appId":"1950a258-227b-4e31-a9cf-717495945fc2","delegatedPermissionIds":["1ca1271c-e2c0-437c-af9a-3a92e745a24d"]},{"appId":"04b07795-8ddb-461a-bbee-02f9e1bf7b46","delegatedPermissionIds":["1ca1271c-e2c0-437c-af9a-3a92e745a24d"]}],"requestedAccessTokenVersion":null}'
echo "Authorised Azure CLI, PowerShell and PowerBI"
az ad app owner add --id $uri --owner-object-id $(az ad signed-in-user show --query id -otsv)
echo "Added owner"
az ad app show --id $uri --output jsonc
echo "App Registration created. Authenticate with:"
echo "az login --scope $uri/.default"

Slightly longer, but they do exactly the same.

Authenticate to the scope

1. Authenticate against your exposed API

   az login --scope api://$(az account show --query tenantId -otsv)/fabric_terraform_provider/.default


   Note that there may be a slight delay for the previous commands to propagate. If this commands fails then wait 5 seconds and try again.

Next

You have create your app registration for user impersonation, exposed the API for Azure CLI, PowerShell and Power BI, and authenticated against the scope.

You are ready to use the fabric terraform provider as yourself, which is what we will do in the next page.
